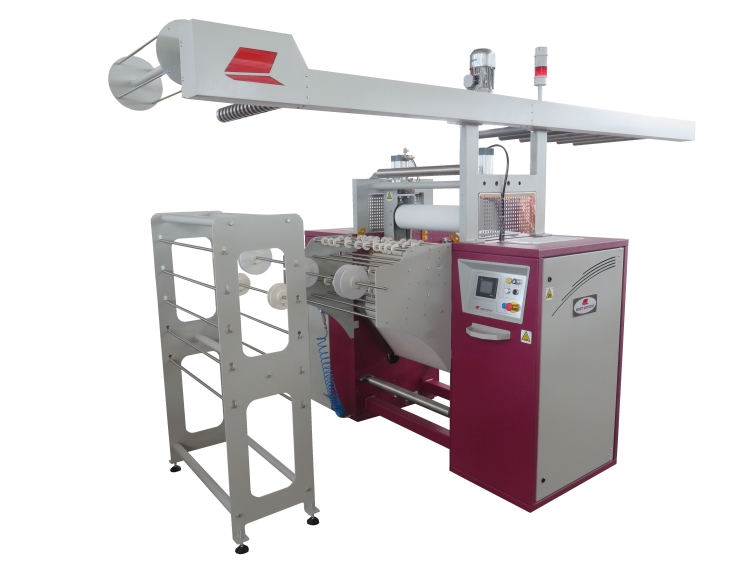

Transfer paper is fed into the calender across the entire working width - there can be several side by side, so you can use virtually the whole calender. The paper is fed from the roll, the ribbons can be fed from the wound rolls or directly from the box through the unwinding element which ensures they don't go over and then through the separators which place them in the right place.
Arrange a visit to our showroom, where we will be happy to give you a no-obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of this technology.
Features
- huge production capacity
- possibility to print on the ribbon directly from the box via the unwinding element
- precise thermal regulation
- castors - possibility to move the machine when not in use
- very robust construction, the machine is virtually indestructible
| Technical specification | |
|---|---|
| Diameter of printing cylinder | 500mm |
| Width of printing cylinder | 750mm |
| Working width | 550/650mm |
| Installed power | 15 kW |
| Average electric consumption | 10 kW/h |
| Working speed |
1-15lm/min |
| Dimensions (cm) | 179 x 378 x 248 |
| Weight | 1300kg |
