Drucktech PHP45-2

Drucktech PHP45-2

The Hungarian company Drucktech is a long-standing market leader in small-platen presses and is generally regarded as a leader in terms of product quality and stability. At first glance, it is already a machine with a very robust construction. This professional semi-automatic heat press is designed for production and can handle even the heaviest production loads - whether in screen printing, direct digital printing on cotton or sublimation.

Description

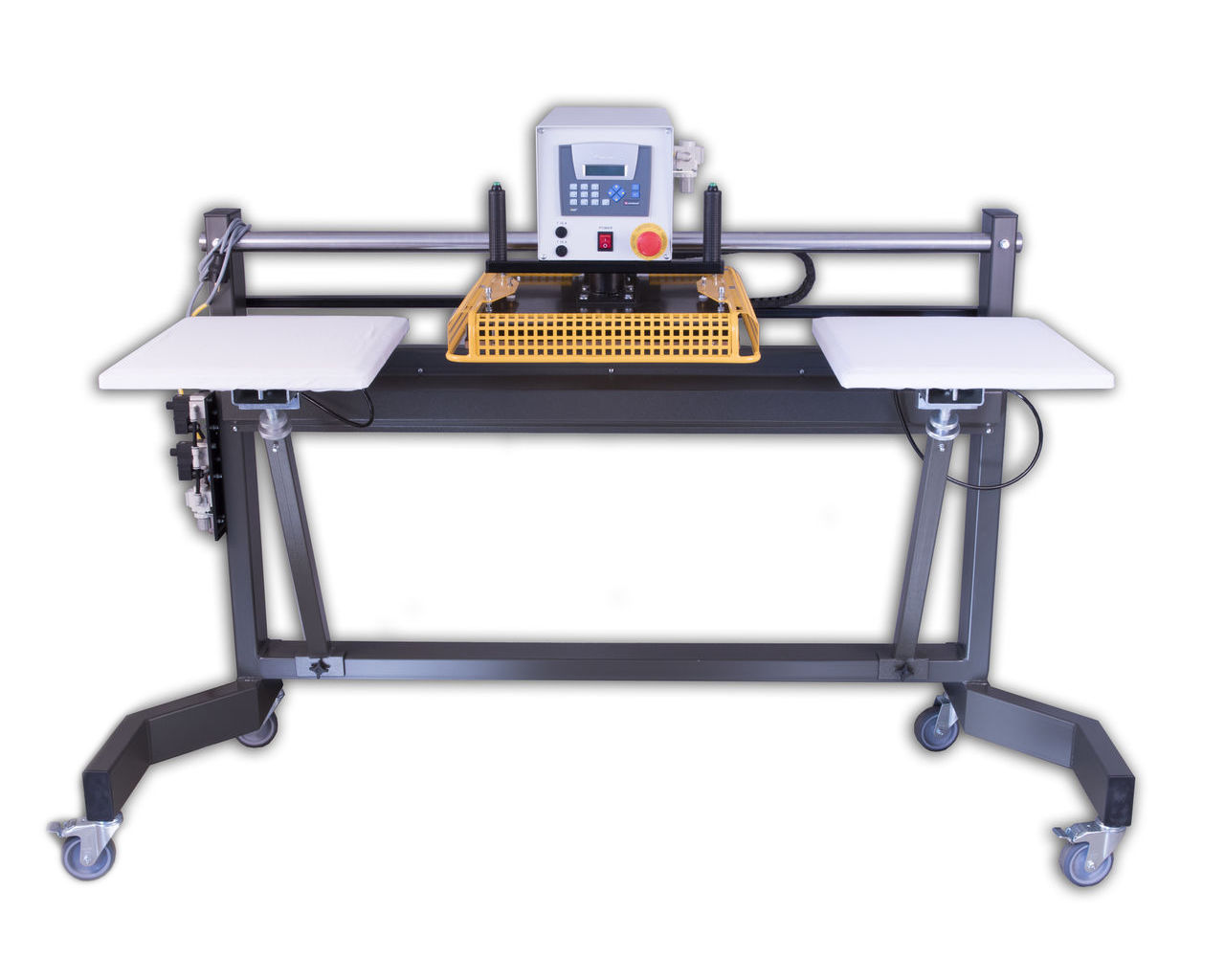

PHP45-2 semi-automatic flat heat press with pneumatic double diaphragm table on stand.
Two table top pneumatic heat presses with 40x50 cm diaphragm tables. Thanks to the two membrane tables, productivity can be doubled while energy consumption remains at the level of a single table heat press. Many functions can be set in the PLC controller of the heat press, e.g.: different ironing times on the tables, automatic ironing (the heating plate starts automatically if it is in the correct position over the table). There is no need for a separate table for the heat press as it stands on legs with castors. The heat press can also be equipped with membrane or conventional tables. Two operators can work comfortably at the same time with this device, as the heating plate fits between the tables - whoever wants to use it pulls it up.

Arrange a visit to our showroom, where we will be happy to give you a no-obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of this technology.

Book a showroom appointment

Features

  • Automatic movement of heated plate after moving the heated plate (can be switched on or off)
  • Self-adjusting heated-plate
  • Safety frame
  • Different time setting for the 2 plates
  • The flat membrane plates work as a traditional workplate if used without compressed air.
  • Changeable, rotatable workplate.
  • Works with membrane and traditional plates as well.
  • High surface pressure.
  • Optimised heating power (value can be displayed)
  • Customizable control unit.
  • Warning signal till the machine reaches the set temperature.
  • Counter (can be reset).
  • Protection against switch-on after an eventual power outage.
  • System check on start.
  • Heating element cast into aluminium.
  • Lifelong guarantee on heated plate.
  • Strong, massive structure.
  • Replaceable protective teflon sheet on heated plate.
Technical specification
plate, heated plate
 40x50 cm
membrane plate
 yes
changeable plate
 yes
autorelease yes
traditional plate
 yes
power
 230 V / 2100 W
compressed air consumption
 50l / min
max. pressing power kg/cm2 0,7
max. material thickness
 3 cm
dimensions 170 x 150 x 80 cm
weight 200 kg
