Description

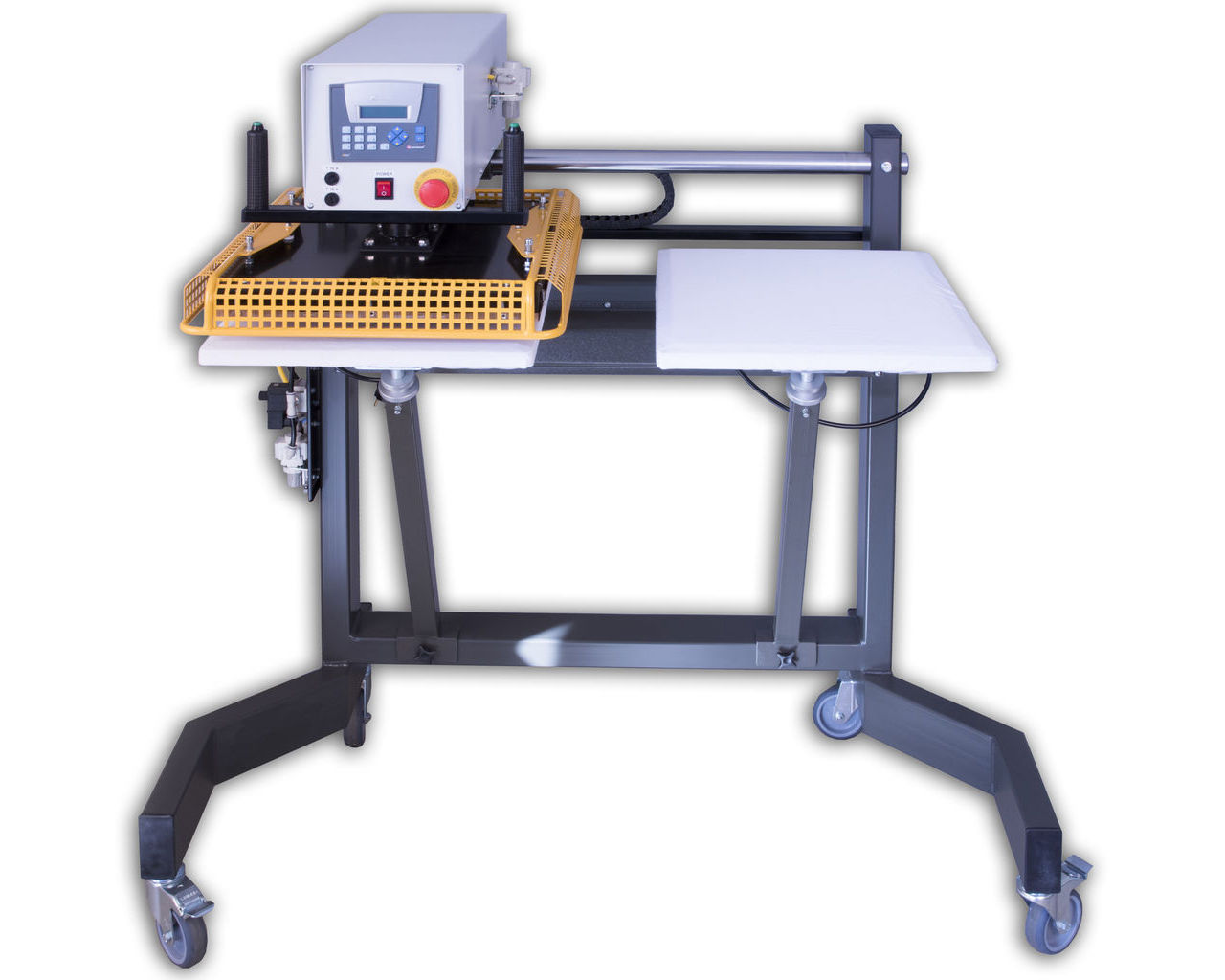

Pneumatic double diaphragm heat press on stand PHP45-2R.Double pneumatic heat press with membrane plates 40x50 cm. Thanks to the two membrane plates, productivity can be doubled, while energy consumption is at the level of a single plated heat press. Using the PLC unit of the machine, various functions can be set: different time for the plates, automatic ironing (the heated plate starts automatically when it is in the right position), etc. The heat press does not need a separate table as it has wheeled legs . Smaller membrane or traditional worktops are available as additional accessories.
Arrange a visit to our showroom where we will be happy to give you a no obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of the technology.
Features
- Automatic movement of heated plate after moving the heated plate (can be switched on or off)
- Self-adjusting heated-plate
- Safety frame
- Different time setting for the 2 plates
- The flat membrane plates work as a traditional workplate if used without compressed air.
- Changeable, rotatable workplate.
- Works with membrane and traditional plates as well.
- High surface pressure.
- Optimised heating power (value can be displayed)
- Customizable control unit.
- Warning signal till the machine reaches the set temperature.
- Counter (can be reset).
- Protection against switch-on after an eventual power outage.
- System check on start.
- Heating element cast into aluminium.
- Lifelong guarantee on heated plate.
- Strong, massive structure.
- Replaceable protective teflon sheet on heated plate.
| Technical specification | |
|---|---|
| plate, heated plate |
40x50 cm |
| membrane plate |
yes |
| changeable plate |
yes |
| autorelease | yes |
| traditional plate |
yes |
| power | 230 V / 2100 W |
| compressed air consumption |
45l / min |
| max. pressin power kg/cm2 | 0,7 |
| max. material thickness |
3 cm |
| dimensions | 120 x 150 x 80 cm |
| weight | 180 kg |
