Description

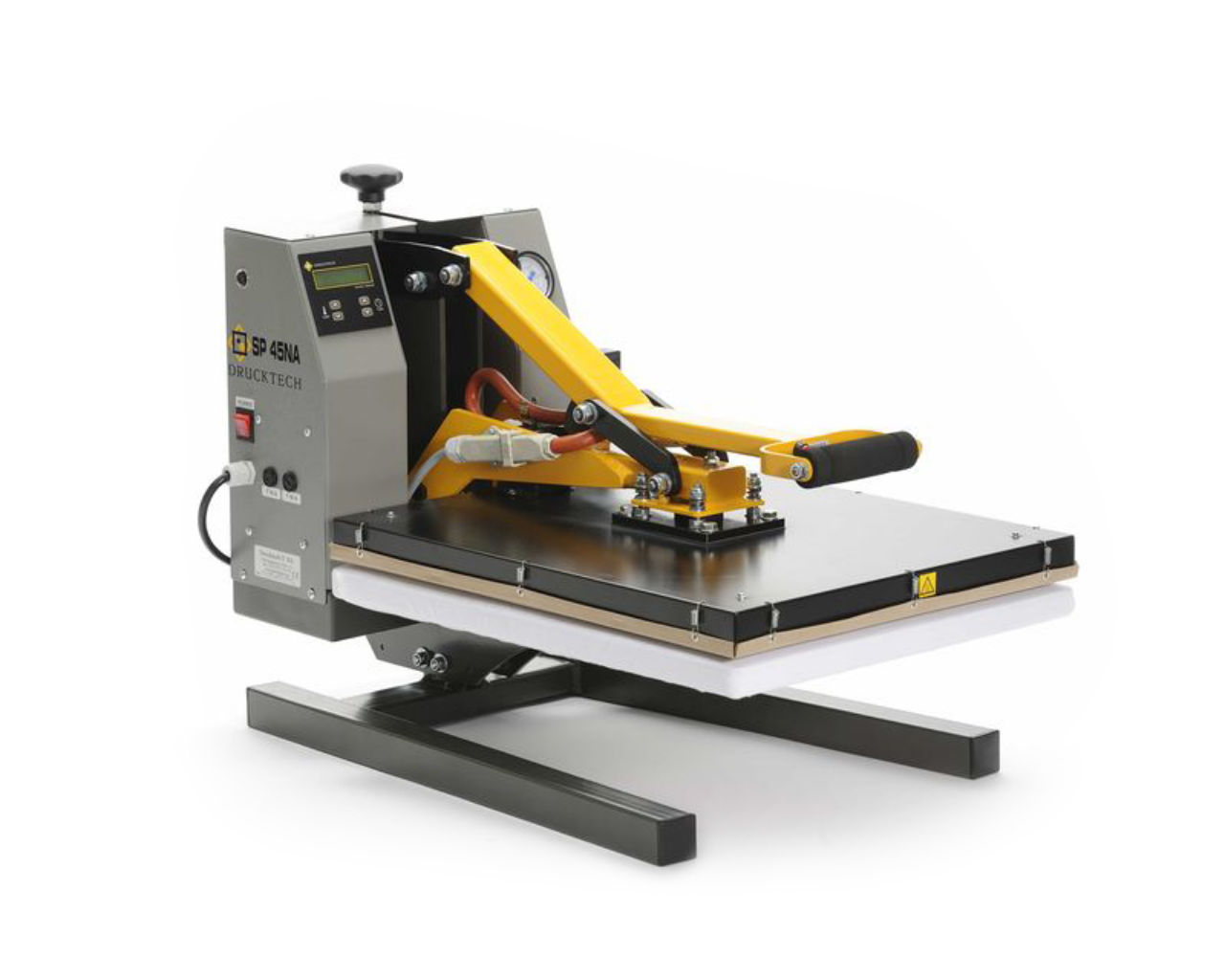

Manual flat heat press with automatic release and with membrane plate.Manual heat press with membrane plate 40x50 cm. Thanks to the new structure, t-shirts can be easily stretched on the worktop and even thicker material will fit. The membrane plate of the heat press can be rotated or replaced with smaller ones. The self-adjusting heated plate is connected by a connector and is rotatable by 90°. The heat press can be used with membrane or traditional plates. When the compressed air supply is switched off, the membrane plate also functions as a traditional plate. The heat press is also available with heated worktops. The heated platen will automatically open after the set time has elapsed.
Arrange a visit to our showroom where we will be happy to give you a no-obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of the technology.
Features
- Tabletop or rack design.
- Self-adjusting heated plate (it may be rotated).
- Changeable, rotatable workplate.
- The flat membrane plates work as a traditional workplate if used without compressed air.
- Works with membrane and traditional plates as well.
- High surface pressure, up to 1,5 kg/cm².
- Programmed or manual time setting.
- Timer for postproduction.
- Customizable control unit.
- Counter (can be reset).
- Protection against switch-on after an eventual power outage.
- System check on start.
- Warning signal till the machine reaches the set temperature.
- Heating element cast into aluminium.
- Lifelong guarantee on heated plate.
- Strong, massive structure.
- Replaceable protective teflon sheet on heated plate.
| Technical specification | |
|---|---|
| plate, heated plate |
50x40 cm |
| membrane plate |
yes |
| autorelease | yes |
| changeable plate |
yes |
| power | 230 V / 2100 W |
| compressed air consumption |
15l / min |
| max. pressing power kg/cm2 | 0,7 |
| max. material thickness |
2 cm |
| dimensions | 45 x 65 x 50 cm |
| weight | 60 kg |
