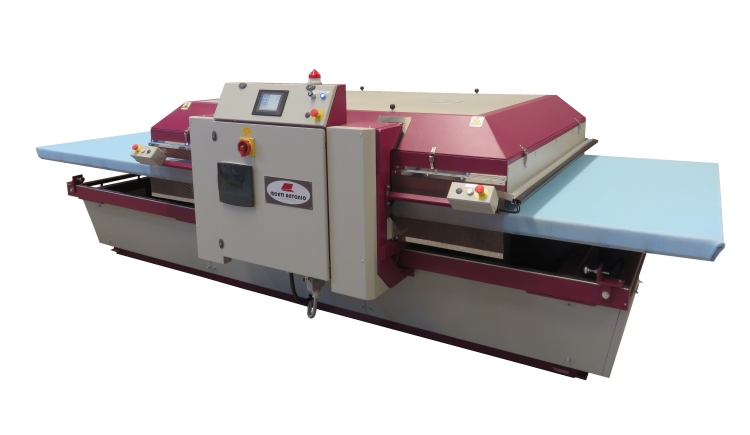

Monti Antonio mod. 200

Monti Antonio mod. 200

Large size model produced as standard in 8 size variants. Plates are static, the press body is moved from one plate to another. During the pressing of one side it is possible to prepare the material for the second plate. An advantage is the possibility of mounting a vacuum element, which makes it the ideal machine for production where you need to achieve a deep recolouring of the material. This is most commonly used by manufacturers of cycling clothing, leggings and swimwear.

In the production of stretch clothing, the vacuum transfer is very effective, when even after stretching the product, its surface does not change colour and remains dark. In the production of flags, the use of a vacuum press ensures that it is virtually impossible to tell which side is "printed", so the recolouring is almost 100 per cent. In the production of printed bath towels, bathrobes, socks, and other terry products, this technology is a necessity because of the two-sided discolouration of the hairs.

Arrange a visit to our showroom where we will be happy to give you a no-obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of this technology.

Book a showroom appointment

Features

    • transfer printing, sportswear, flags, towels, bathrobes
    • direct reactivation of inks
    • bonding of films, nets
    • plasticization and film coating
    • lamination
    • metallization
    • transfer of special effects (snakeskin)
    Dimension (cm)
    *without vacuum    		 180x130 200x150 225x160 260x160 310x160 360x160 405x160 520x220
    Installed power kW/h 20,5 26 26 31 43 49 52 85
    Average electrical consumption
    		 14 17 17 20 28 32 34 55
    Overall dimensions WxLxH (cm) 190 x
    390 x
    155     		210 x
    430 x
    155     		220 x
    480 x
    155     		220 x
    550 x
    155     		220 x
    650 x
    155     		220 x
    750 x
    155     		220 x
    840 x
    155     		260 x
    1070 x
    155
    Net weight kg 2400 2900 3100 5000 7200 7600 8500 11000
    Plates number
    		 2 2 2 2 2 2 2 2
    Dimension (cm)
    *with vacuum    		 180x130 200x150 225x160 260x160 310x160 360x160 405x160 520x220
    Installed power kW/h 22 28,5 28,5 33,5 46 52 55,5 88
    Average electrical consumption 14,5 18,5 18,5 22 30 34 36 57
    Overall dimensions WxLxH (cm) 190 x
    390 x
    155     		210 x
    430 x
    155     		220 x
    480 x
    155     		220 x
    550 x
    155     		220 x
    650 x
    155     		220 x
    750 x
    155     		220 x
    840 x
    155     		260 x
    1070 x
    155
    Net weight kg 2400 2900 3100 5000 7200 7600 8500 11000
    Plates number 2 2 2 2 2 2 2 2
