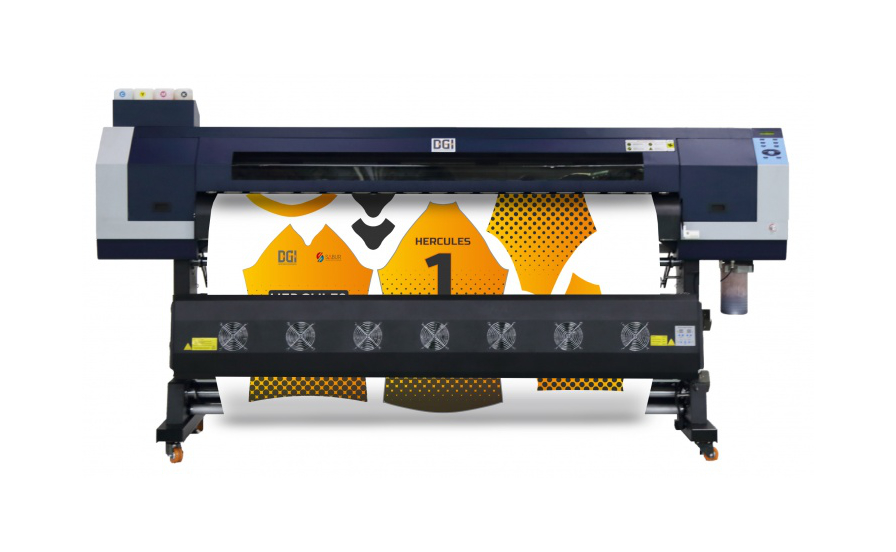

It uses EPSON Precission core heads, which have been very popular in recent years due to their durability, resilience and brilliant print quality. With a print width of 1.9m, it has sufficient margin to be able to print any conventional roll-fed textile material capable of absorbing sublimation pigment. Maximum print speed at 2 passes is 97 square metres per hour. The recommended print mode is 4 passes, where it consistently achieves (unrivalled in its category) 51m2/h with absolutely continuous layers of colour and beautiful output quality. The manufacturer has also focused on small details such as the original illumination of the printing area, the bottom drying and the rear winding of the production, which allows the print to dry perfectly. A benefit is also the included professional ripping software from the Swiss company ERGOSOFT.
Book a visit to our showroom, where we will be happy to give you a no-obligation demonstration of the technology, produce the necessary samples and discuss all the peculiarities of this technology.
| Technical specification | |
|---|---|
| Print head |
Piezo (PrecisionCore micro TFP I3200) (2 head) |
| Ink | DGI Original Dye Sublimation Ink |
| Media | Transfer paper |
| Max print width | 1,900mm |
| Max media load | 1,940mm |
| Print mode |
Uni/Bi Direction |
| Interface | TCP/ IP |
| Product dimensions |
375 x 347 x 187 mm (šírka x hĺbka x výška) |
| Resolution (DPI) | Max. 720 x 1,800 DPI |
| RIP software | Ergosoft (Optional : Inedit) |
| Colors | 4 colors (Cyan, Magenta, Yellow, Black) |
| Operating environment | Temperature :16~28℃ Humidity : 35~65% |
| Electricity | Printer: Single phase, 220V~240V (50/60Hz), 8A Dryer (front): Single phase, 220V~240V (50/60Hz), 18A Dryer (bottom): Single phase, 220V~240V (50/60Hz), 10A |
| Dimensions | Uncrated: 2 980 mm (D) X 840 mm (Š) X 1 600 mm (V)
Crated: 3 100 mm (D) X 990 mm (Š) X 1 090 mm (V) |
| Weight | Uncrated: 370kg Crated: 660kg |
